£13.95 (Inc VAT)

  • Heavy duty 4G/LTE manhole cover antenna
  • Extremely low profile and discrete, it measures only 31mm in diameter and 5mm thick
  • Fully dust and water proof to a rating of IP68
  • Provides a gain of 3dBi
  • Supplied with a 2 meter cable with SMA male connector
  • supports frequencies between 698-960MHz and 1710-2700MHz
  • Perfectly designed to be used with data water loggers and smart meters

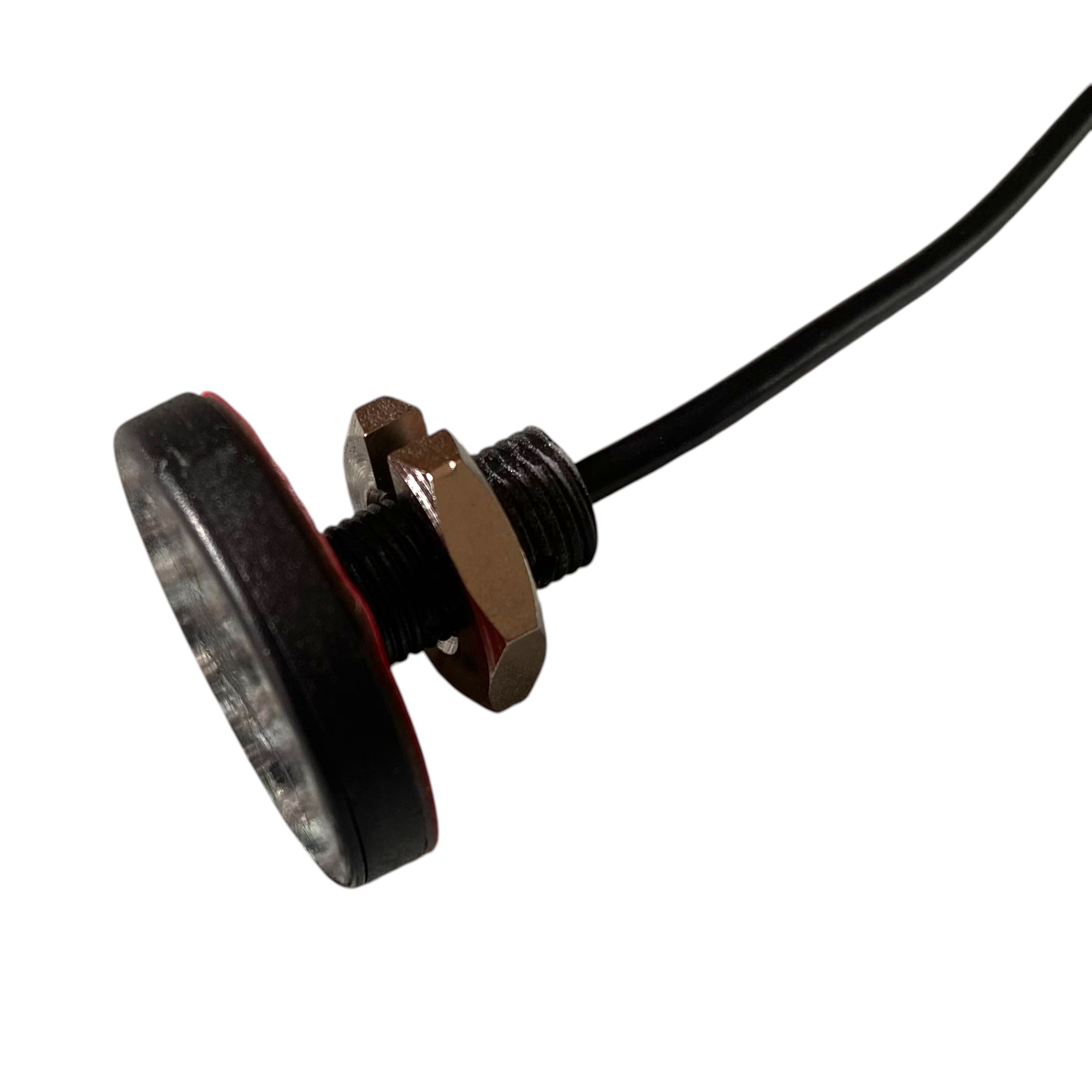

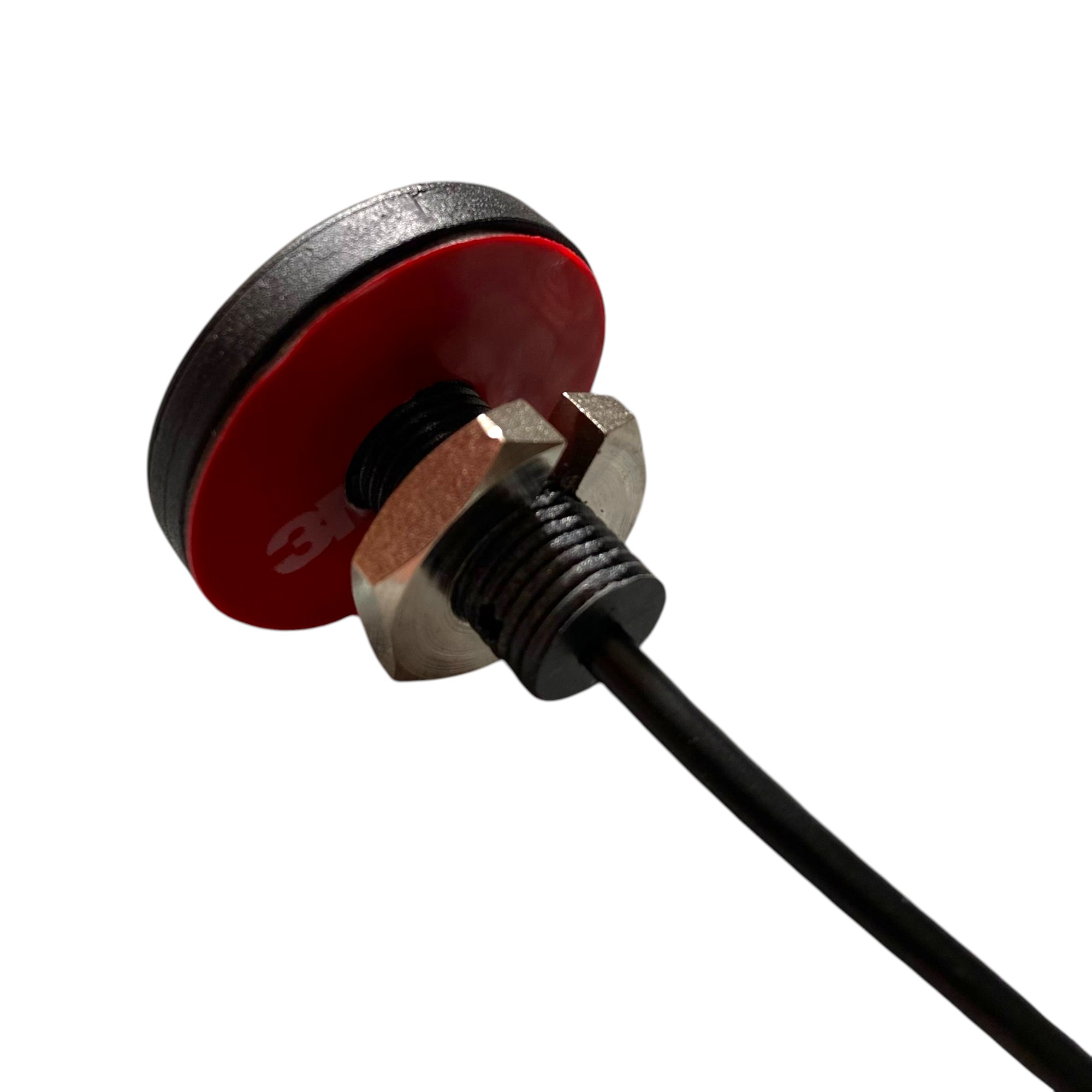

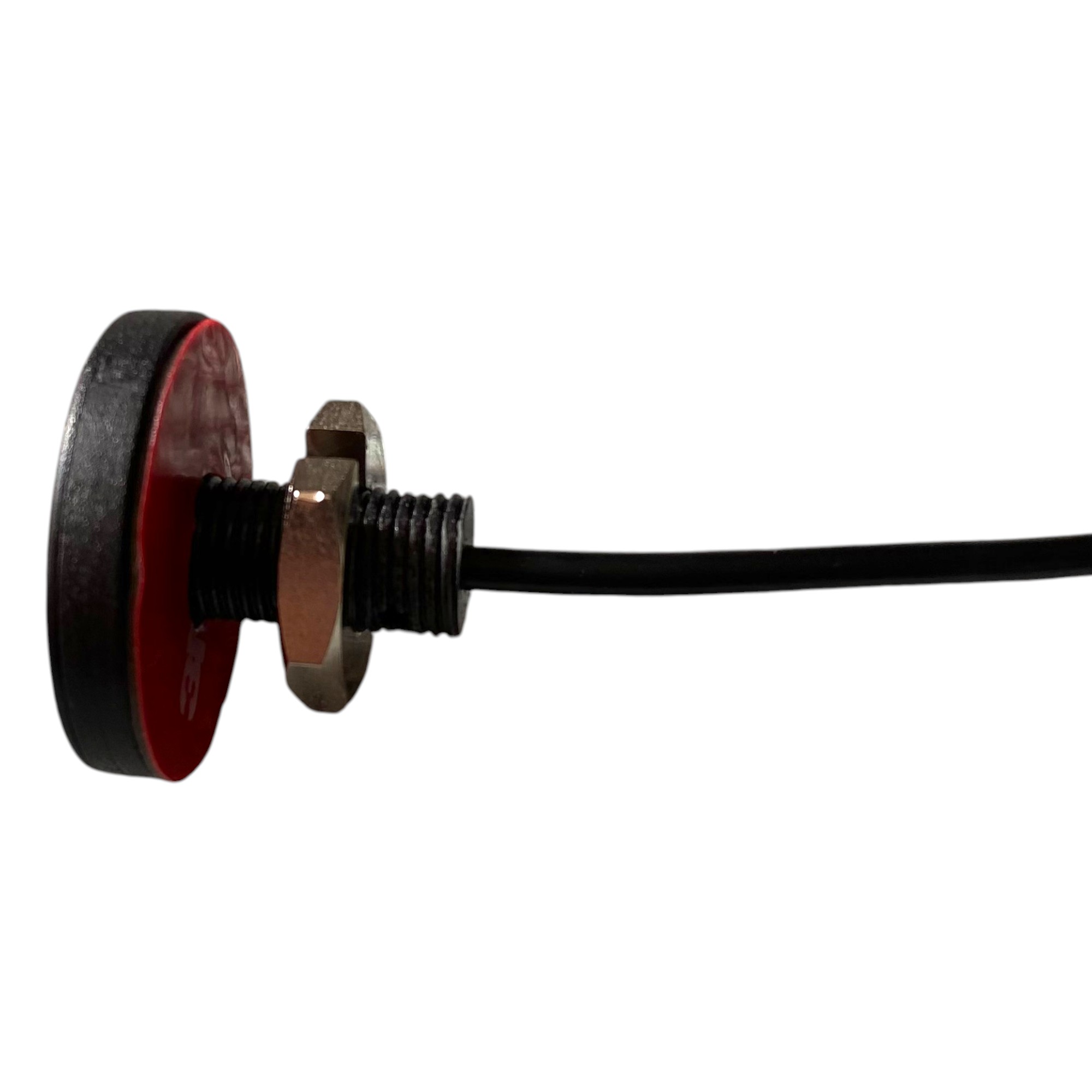

Extremely low profile, discrete, and heavy duty 4G/LTE manhole cover antenna, that measures only 31mm in diameter and 5mm thick. It is fully dust and water proof to a rating of IP68, provides a gain of 3dBi, and supports frequencies between 698-960MHz/1710-2700MHz. It is supplied with a 2 meter RG174 cable and SMA male connector



For bulk pricing, customisations, or more details, please get in touch via the form below.

Weight 0.04 kg
Dimensions 3 × 3 × 0.5 cm
Cable Length

2M

Cable Type

RG174

Cellular Frequency Range

698-960MHz, 1710-2700MHz

Cellular Gain

3dBi

Inputs - Cellular

1

Colour

Black

Connector

SMA Male

Coverage

2G, 3G, 4G

Environment

Vehicle, Harsh, Indoor, Outdoor

Impedance

50Ohm

Mount

Screw, Sticky Pad, Through Hole

Operating Temperature

-40℃ to +85℃

Polarization

Linear

VSWR

≤2.5

Waterproof Rating

IP68
