£195.95 (Inc VAT)

  • Quad 4G/5G cellular inputs, quad 2.4GHz/5GHz WiFi inputs and 1 GPS/GLONASS input in a single combination antenna.
  • Ruggedised and low profile design makes it the perfect discrete anti vandal antenna.
  • Fully dustproof and waterproof to an IP67 rating making it perfect for outdoor installation as well as indoor.
  • Perfect for mounting on the side or roof of a building, communications cabinets, boats or vehicle.
  • Supplied with 3 meter cables terminated in SMA or RP-SMA (Wi-Fi)

This antenna is a nine port heavy duty antenna with four elements designed to cover the 600-6000 MHz cellular bands, four elements designed to cover the 2.4-2.5 and 4.9-5.85 GHz Wi-Fi bands and one GPS/GLONASS element.

The antenna can be mounted on the roof of a vehicle or fixed structure. The antenna meets or exceeds a variety of environmental ruggedization specifications for transportation applications. Its low profile design makes this antenna ideal for discreate, anti vandal installation, such as buildings, cars, caravans, camper vans, and many machine-to-machine applications for remote monitoring.

This antenna is an omni-directional heavy-duty, fully IP67 waterproof external M2M antenna. The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance.

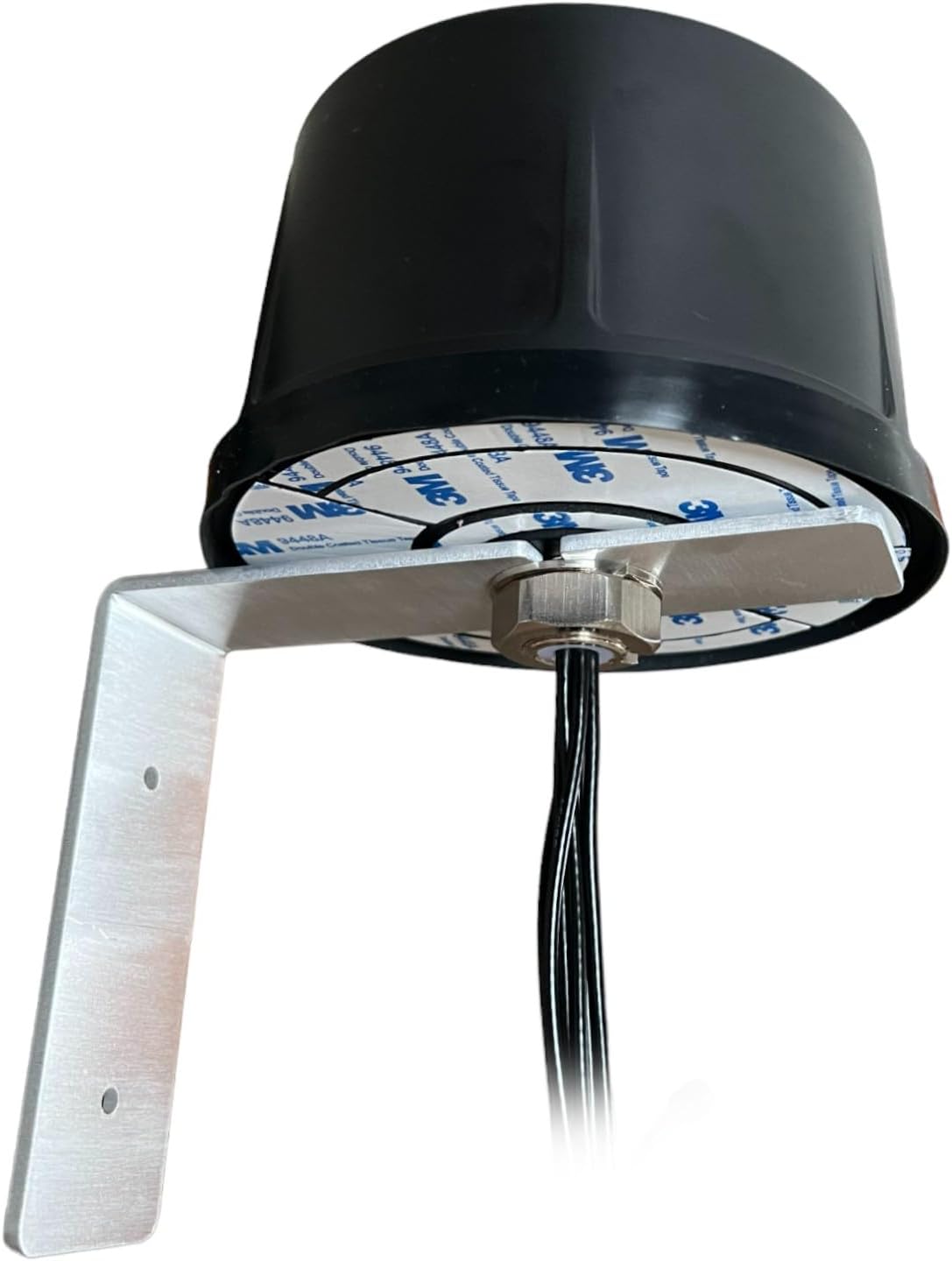

For sturdy installation the antenna combines a 3M adhesive foam along with a robust screw mount.

The antenna measures 14 × 14 × 8.5 cm and is supplied with:

  • 4 x 2G, 3G, 4G, 5G 3 meter LMR195 Cables and SMA male Connectors
  • 4 x 2.4G & 5G Wi-Fi 3 meter LMR195 Cables and RPSMA male Connectors
  • 1 x GPS 3 meter LMR100 Cable and SMA male Connector



For bulk pricing, customisations, or more details, please get in touch via the form below.

Weight 0.9 kg
Dimensions 14 × 14 × 8.5 cm
Cable Length

3M

Cable Type

LMR195, LMR100

Colour

Black

Connector

SMA Male

Coverage

2G, 3G, 4G, 5G

Environment

Harsh, Indoor, Outdoor

Cellular Frequency Range

600-6000MHz

Cellular Gain

3dBi, 5dBi

Impedance

50Ohm

Inputs - Cellular

4

Inputs - GPS

1

Inputs - Wi-Fi

4

Max Input Power

50W

Mount

Screw, Through Hole

Operating Temperature

-40℃ to +85℃

Polarization

RHCP, Vertical

Radiation

Omni Directional

VSWR

≤2

GPS Frequency Range

1575.42MHz, 1602-1610MHz

WiFi Frequency Range

2.4GHz, 5GHz
